Defect Detection Systems
AI inspection that learns from good parts and flags every deviation at line speed.
Automated Quality Inspection
Defect Detection Overview
Our defect detection runs on Adente Vision, our technology partner. The model is trained on about 20 good parts and flags anything that deviates from them, so you do not need to collect examples of every possible fault first. Known defect types are reported by name.

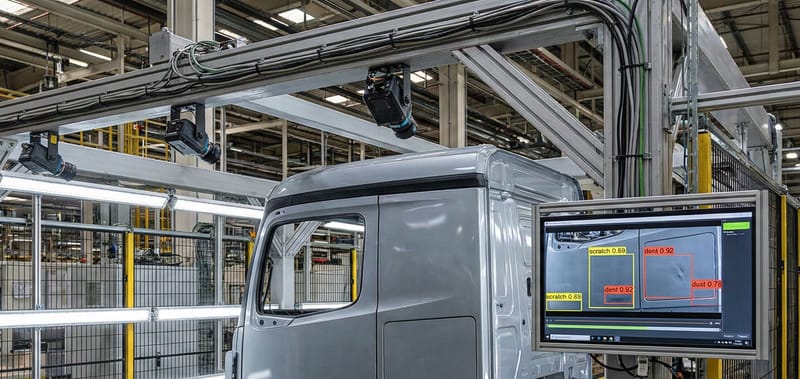

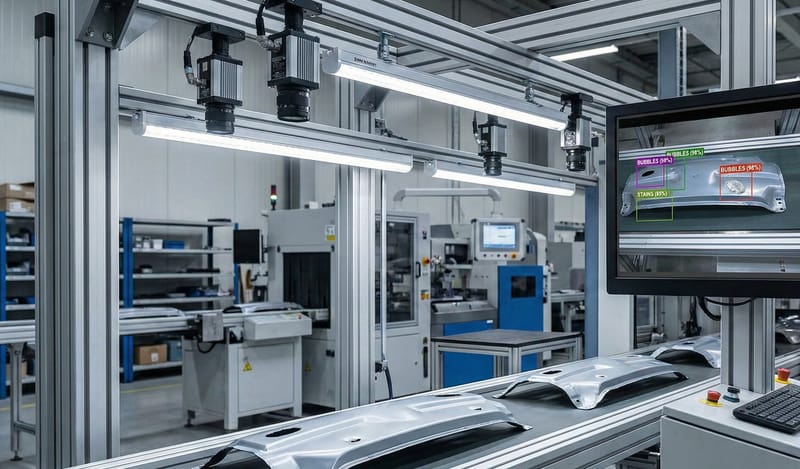

HA-TEC integrates the system into paint shops and finishing lines: camera and lighting positioned for your part, a trigger from the line, and a pass/fail result with a reject signal in your PLC for every part.
Runs on Adente Vision
Trained on your good parts, checked on every part
Anomaly detection learns what a good part looks like and flags every deviation, including defects nobody has seen before. Before we quote, you see the catch rate on your own parts.
Inspection modes used
- Measurement precision
- 0.01 mm
- Decision per part
- ~30 ms
- Good parts to train
- ~20
- Parts per minute
- 100+
What We Detect
Detection Capabilities
Surface and coating defects on painted, cast, machined and plastic parts.
- Paint faults: runs, sags, craters and dirt inclusions
- Scratches, dents and marks
- Cracks, burrs and edge chips
- Surface contamination
- Colour and shade deviations
- Moulding faults: short shots, flash, sink and burn marks
Technology
Technology Features
Camera, lighting, edge computer and software from one platform.
- Global-shutter cameras up to 12 MP
- Lighting set per part to remove glare and reflections
- AI model trained on about 20 good parts, in under 48 hours
- Edge processing at the line, about 30 ms per part
